Półfabrykat stalowy 12x80x500mm szlifowany Indexa IND4134109K

12mmx80mmx500mm GROUND FLAT STOCK Indexa IND4134109K

IND-413-4109K

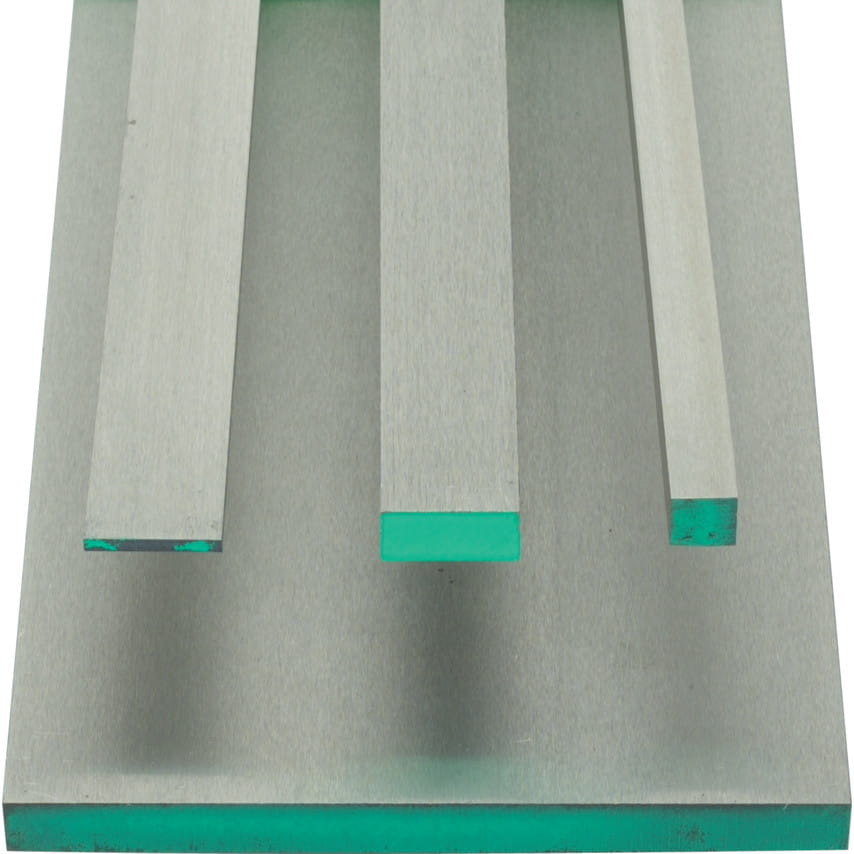

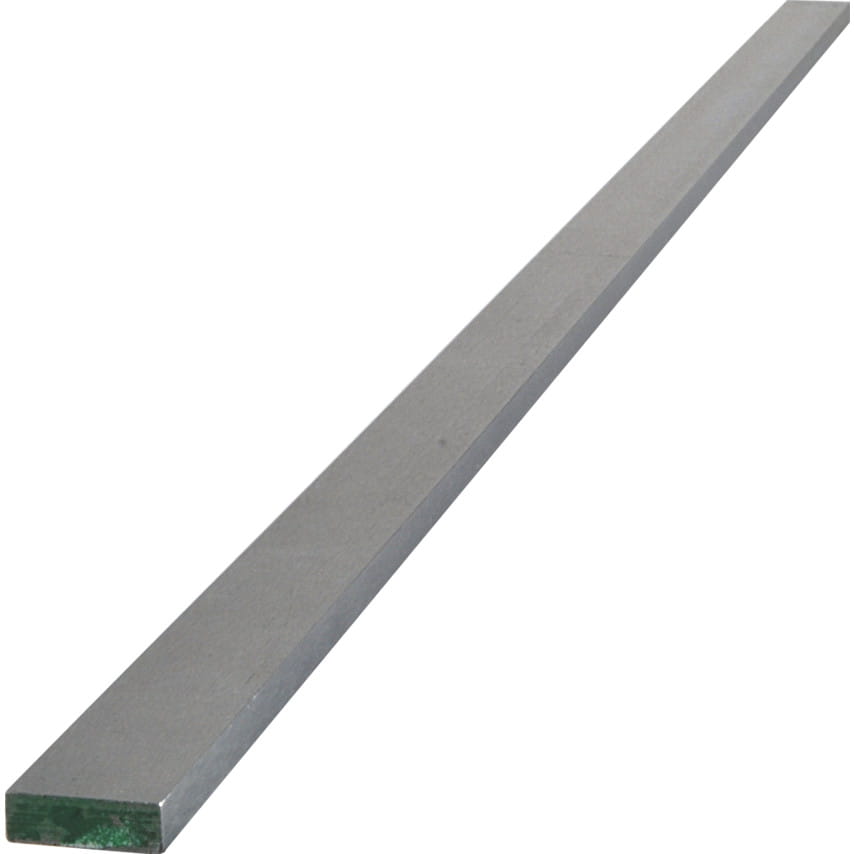

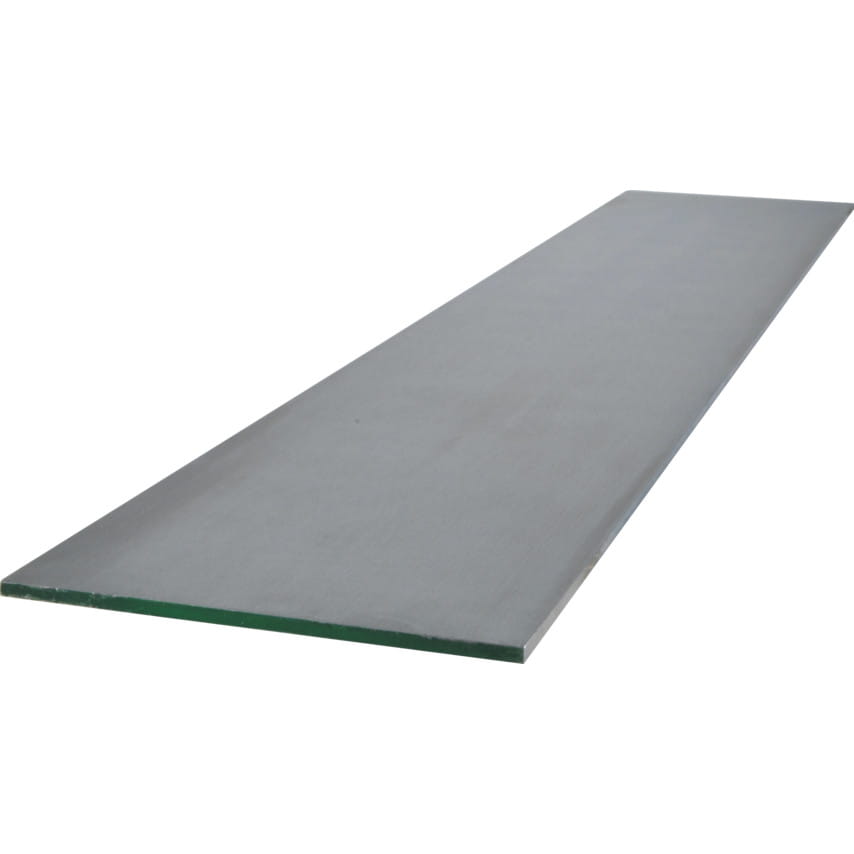

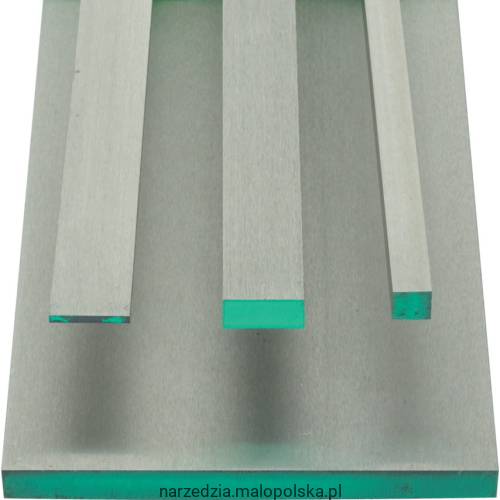

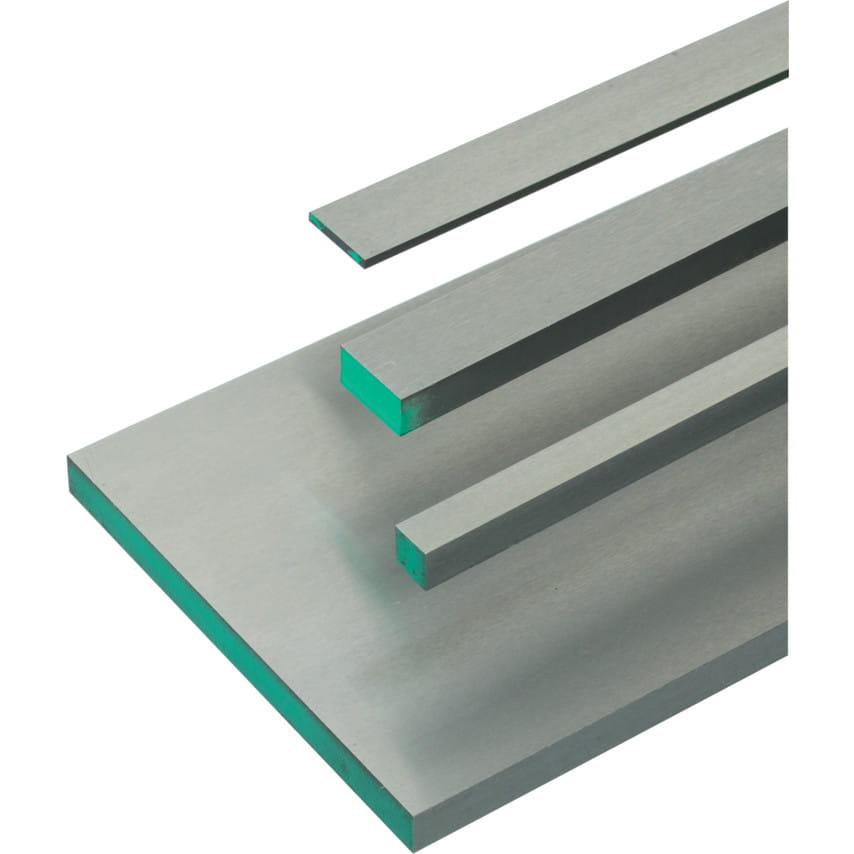

Precision ground flat stock supplied as W1.2510 - 01 Tool Steel (100MnCrW1), in a wide range of Metric sizes. Oil hardening gauge plate supplied in an annealed condition. It offers good durability, gives excellent wear resistance and holds a good cutting edge. An excellent general purpose grade. Applications include medium run dies, press tools, drawing punches, broaches, bushings, lathe centres, chuck jaws, master cavity sinking hobs, paper cutting machine knives, plug gauges, thread gauges and precision measuring tools. It is also used in applications such as cams, cloth cutters, cold taps, reamers, trimmer dies, tube expander rolls, plastic moulds and woodworking cutters, collets, cutting hobs and strip slitting cutters. Top & bottom surfaces supplied in ground condition. Both ends supplied sawn cut. Metric - Preferred Size List Generally available from stock. All sizes listed are 500mm long. Tolerances Thickness: -0.00/+0.05mm Width: -0.00/+0.20mm Length: -0.00/+5.00m Square Bars: -0.00/+0.05mm Material Specification DIN Grade..1.2510 (100MnCrW1) Nearest AISI Standard 01 Hardness 230 HB Surface Roughness max. 3.2µm Chemical Composition C Carbon 0.90 - 1.05% Si Silicon .............. 0.15 - 0.35% Mn Manganese 1.00 - 1.20% Cr Chromium . 0.50 - 0.70% V Vanadium 0.05 - 0.15% W Tungsten 0.50 - 0.70% P Phosphorous max. 0.035% S Sulphur max. 0.035%

• Standards Met: DIN Grade 1.2510 (100MnCrW1)
• Applications:

  -Bushings

  -Drawing Punches

  -Lathe Centres

  -Paper Cutting Machine Knives

  -Plastic Moulds

  -Precision Measuring Tools

  -Thread / Plug Guages

  -Woodworking Knives
• Length Tolerance: -5 - +5.00mm
• Length: 500mm
• Chemical Composition:

  -Carbon (C) 0.90-1.05%%

  -Chromium (Cr) 0.50-0.70%%

  -Manganese (Mn) 1.00-1.20%%

  -Phosphorous (P) max.0.035%%

  -Silicon (Si) 0.15-0.35%%

  -Sulphur (S) max.0.035%%

  -Tungsten (W) 0.50-0.70%%

  -Vanadium (V) 0.05-0.15%%
• Thickness: 12mm
• Thickness Tolerance: -0 - +0.05
• Width Tolerance: -0 - +0.20mm
• Width: 80mm
